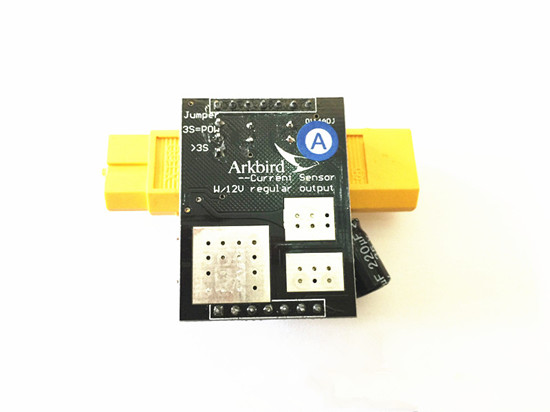

Arkbird Current sensor with 12V regulator output

Arkbird Current sensor with 12V regulator output Arkbird Current sensor with 12V regulator output Arkbird Current sensor with 12V regulator output Arkbird Current sensor with 12V regulator output
Product name:Arkbird Current sensor with 12V regulator output
Item:
Details:

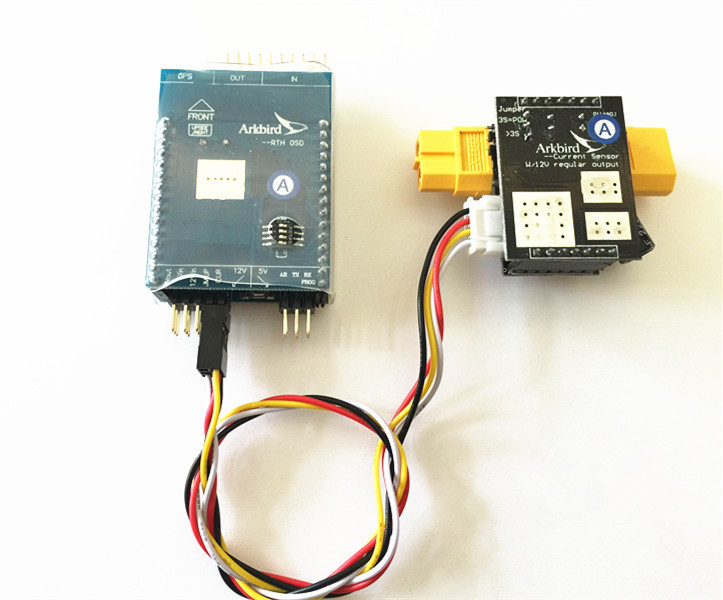

The newest current sensor must match Arkbird OSD when using, it is suitable for non-3S battery users, one single 3S-6S battery can provide power as well as regulated 12.6V(1.5A max) for video TX & camera, (wiring sees below).Plug and play designed ,avoiding voltage drop which used to affect video TX distance. All video TX can be used include 1.2G,2.4G,5.8G etc.

Note:

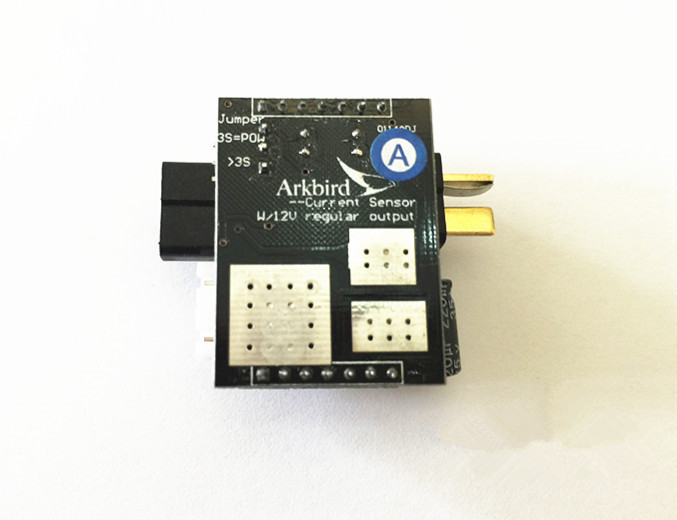

When using 4S-6S battery, connect jumper cap to ”>3S”(Default connection, Direction connection),the output voltage of white line is 12v at the moment. When using 3S battery, connect jumper cap to "3s=POW", regulator module will not work at this time, the output voltage is Power voltage of your 3S battery, (wiring sees below for flight control and XT60 plug voltage ammeter).

Weight:34g





Current sensor with 12V regulator output Product manual
