Arkbird Auto Antenna Tracker(for vedio or PIXHAWK radio)

Arkbird Auto Antenna Tracker(for vedio or PIXHAWK radio) Arkbird Auto Antenna Tracker(for vedio or PIXHAWK radio) Arkbird Auto Antenna Tracker(for vedio or PIXHAWK radio) Arkbird Auto Antenna Tracker(for vedio or PIXHAWK radio)

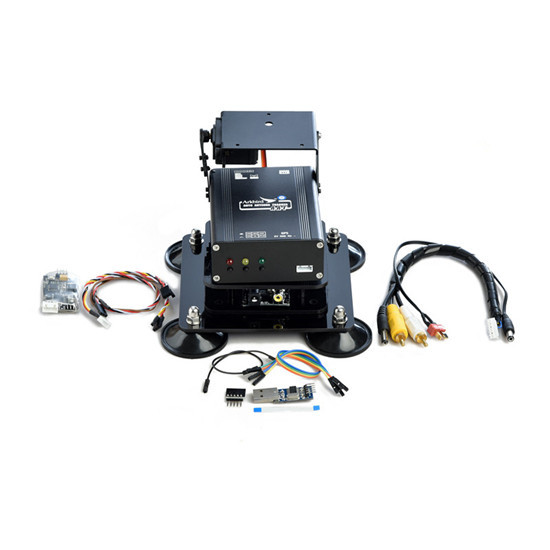

Product name:Arkbird Auto Antenna Tracker(for vedio or PIXHAWK radio)
Item:
Details:



ARKBIRD-AAT (Auto Antenna Tracker) is an antenna tracking system designed for long distance Video transmission. It greatly improves the transmission range by pointing the high-gain ground panel antenna to your plane at every moment.

Innovative designed with two sets of sensors (magnetic compass and inertial navigation compass , gyroscopes) provides ultra high-precision pointing;  Video transmission; Plug and play designed; Take-off point coordinates can be automatically saved after powering-on; with ground module 's GPS, change in position of ground module is allowed while tracking(dynamic positioning).

Every AAT is tested with max load of KG before delivered.compatible with fixed wing,quad,multirotor.If you havn't use our OSD, pls use this one.

Seven innovative designs give you the best experience:
1. Two sets of sensors for dual-coupling correction equipped with magnetic compass and inertial navigation compass (gyroscopes), ultra high-precision pointing;
2. Plug and play; work with Arkbird OSD to make a weld-free plug assembler; advanced full-automatic calibration algorithm for one step calibration;
3. The newest version has only video transmission, 50hz;
4. Integrated suction cup mounts and tripod mounting hole , Super tiny (PTZ body 11cm * 8.8cm * 3.9cm), high-quality powerful steering engine (max load 2kg), 360-degree slip ring without winding;
5. Take-off point coordinates can be automatically saved after powering-on; dynamic positioning can be realized by using the GPS interface in the ground module, which supports movement tracking (e.g. It can be used when driving or emergency-landed plane searching);
6. 9600-115200 Self-adaptive GPS Baud rate without any setting;

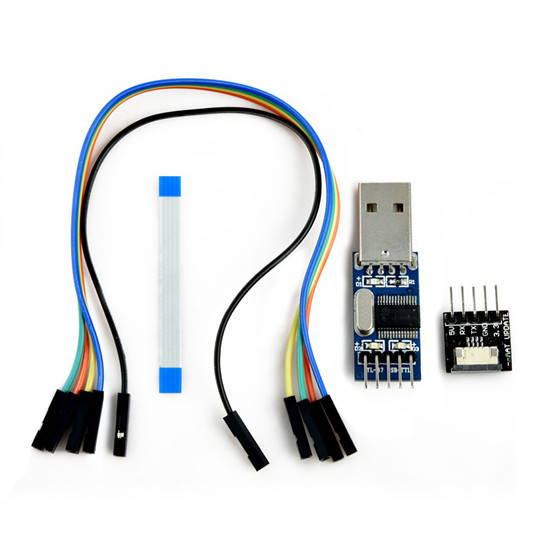

7. Reserving an interface for upgrade, and more functions for continuous upgrades.


Features:
Arkbird AAT

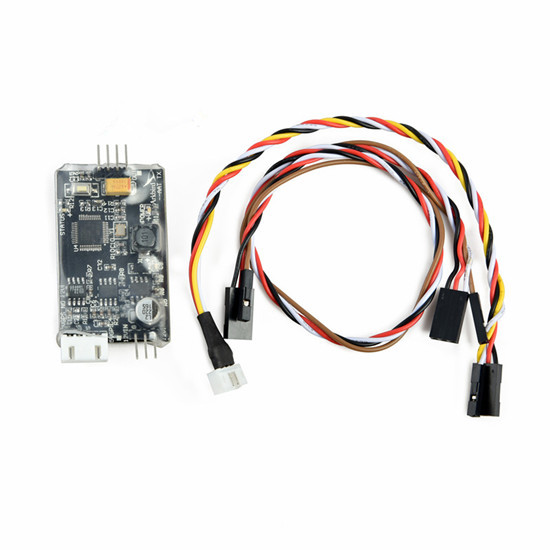

• Airborne module: Voltage: 2S-3s
• Peak current: 200mA@12V
• Ground module: Voltage: 3S
•  Peak current: 800mA@12V
Arkbird GPS
 • Power supply: 3-5.8V
 • Output format: TTL, 5Hz, 38400


AAT Manual
