Arkbird 433 Serial Module(Ground Control Station)

Arkbird 433 Serial Module(Ground Control Station) Arkbird 433 Serial Module(Ground Control Station)
Product name:Arkbird 433 Serial Module(Ground Control Station)
Arkbird GCS(Ground Control System) is a software specifically designed for Arkbird Autopilot, the aircraft flight can be monitored, controlled by computer, compatible to Arkbird 2.0 and Arkbird LITE Autopilot (it supports 50 waypoints, Note: Autopilot needs to be upgraded to 1.2010 or later firmware).


1. Portable suite, readily open after being downloaded,user-friendly;
2. Customized 433 serial module has the frequency hopping function(FHSS);plug and play, optimizing the compatibility with ground station program,without any settings;
3. Two sets of Arkbird Autopilot access to serial module enable the exchange of position, achieve the formation flight, display the position and altitude of the other aircraft on OSD, automatically tracking flight;
4. Support Google, Bing and Baidu Map, support the free saving of offline maps and free saving of zoom level in Frame Selected Area, with no need to worry that it is unusable in case of field operation with unavailable internet access;
5.Support the import and export of waypoint table;
6.Support multi-language and the function of track replay;
7. Support the calibration of takeoff point, so that latitude/longitude deviation generated from different maps will be accurately matched by user’s click.
8. Support the measuring function;
9. Allow for the setting of emergency point, multiple waypoint actions, Autopilot Channel 5, 6 can be used as waypoint actions.
10. Various action instructions can be immediately executed.

If your Autopilot 2.0 version, autopilot 2.0 lite is not the lastest version , pls conact me ,I will send you the latest firmware.If your UHF is 433Mhz, pls choose 915 serial module.

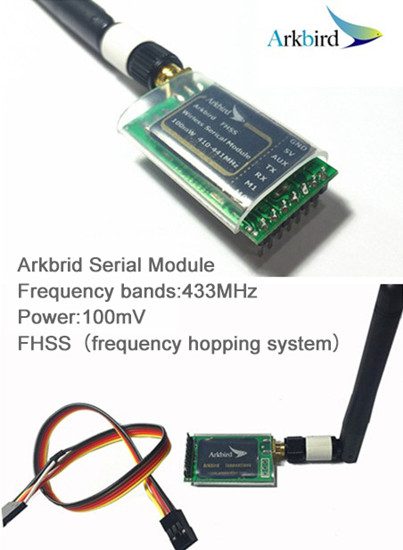

433 serial module
433 serial module antenna
USB adapter
connection cables
Dimensions: 202x142x40mm
Total weight:119.5g

Arkbird 433 Serial Module(Ground Control Station)
